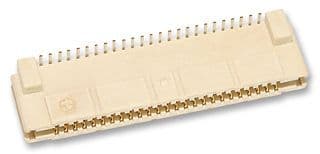

This 50-position surface mount receptacle connector is rated for 100V and 500mA. It has a maximum operating temperature of 85°C and a minimum operating temperature of -55°C. The connector is compliant with RoHS regulations and has a low halogen content. It is packaged in a rail/tube format with 3600 pieces per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 52602-0579 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 50 |
| Number of Contacts | 50 |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 3600 |
| Packaging | Rail/Tube |
| Pitch | 1mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 52602 |
| Termination | SMD/SMT |
| Voltage Rating | 100V |
| RoHS | Compliant |
