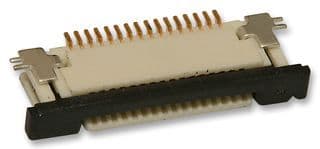

Right-angle FFC/FPC board connector, ZIF, 0.5mm pitch, 16 contacts, and 16 positions. Features gold-plated bronze contacts, a white UL94 V-0 rated housing, and a 500mA current rating. Designed for solder termination with a 50V voltage rating and 20 mating cycles. Operates within a -20°C to 85°C temperature range.
Voltage Rating50V
Current Rating500mA
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Molex 52745-1697 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Molex 52745-1697 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Depth | 5mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | White |
| Length | 14.1mm |
| Material | Bronze |
| Mating Cycles | 20 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Number of Circuits | 16 |
| Number of Contacts | 16 |
| Number of Positions | 16 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Pitch | 0.5mm |
| Plating | Gold |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 52745 |
| Stackable | No |
| Termination | Solder |
| Voltage Rating | 50V |
| Wire/Cable Type | Straight |
Compliance
| RoHS | Compliant |
Datasheet
Molex 52745-1697 Datasheet
Download the complete datasheet for Molex 52745-1697 to view detailed technical specifications.
