40-position, 2-row board-to-board receptacle featuring a 0.5mm pitch and surface mount termination. Constructed with bronze contacts and gold plating, this connector offers a 500mA current rating and a 50V voltage rating. The white, low halogen insulator houses a straight, female receptacle designed for vertical orientation. Operating within a -40°C to 105°C temperature range, this RoHS compliant component is supplied in tape and reel packaging.
Voltage Rating50V
Current Rating500mA
Quick Jump:
Technical Specifications
Molex 52974-0404 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Depth | 5.4mm |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | White |
| Length | 11.7mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 50V |
| Number of Circuits | 40 |
| Number of Contacts | 40 |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Pitch | 0.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 52974 |
| Termination | Solder |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 52974-0404 Datasheet
Download the complete datasheet for Molex 52974-0404 to view detailed technical specifications.
No datasheet is available for this part.

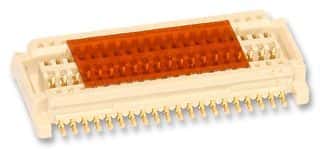

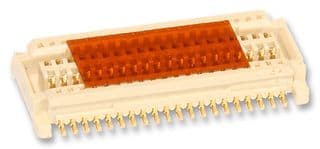

Product Images
