10-position, 1-row male right-angle header with a 1.25mm pitch for surface mount termination. Features blade pin contacts made of tin-plated bronze, rated for 1A current and 125V voltage. The natural-colored housing is UL94 V-0 flammability rated and operates within a -40°C to 85°C temperature range. This RoHS compliant connector is supplied on tape and reel.
Voltage Rating125V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 53261-1071 technical specifications.
General
| Color | Natural |
| Contact Material | Bronze, Tin |
| Contact Plating | Tin |
| Contact Type | Blade Pin |
| Current Rating | 1A |
| Depth | 5.2mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Natural |
| Length | 17.65mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Tape and Reel |
| Pitch | 1.25mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PicoBlade |
| Termination | Solder |
| Voltage Rating | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 53261-1071 Datasheet
Download the complete datasheet for Molex 53261-1071 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

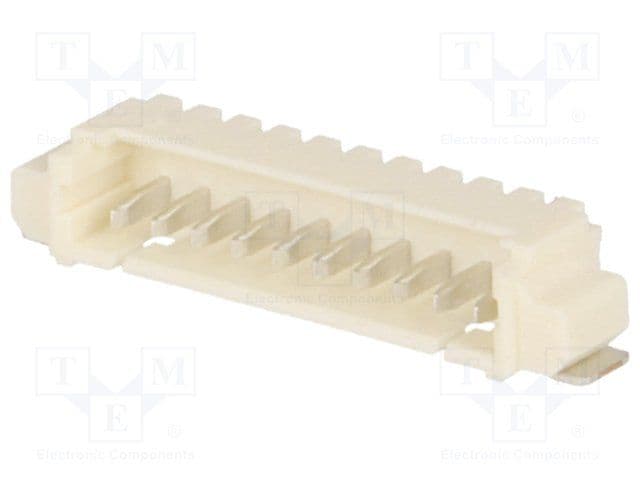

Product Images
