This 26-position surface mount rectangular connector features a contact material of bronze with tin plating, and is rated for 500mA of current. The connector has a depth of 5.1mm and a pitch of 0.8mm. It is available in a tape and reel packaging format. The connector is compliant with RoHS regulations, but its compliance with Reach SVHC is unknown. It is not radiation hardened.
Voltage Rating50V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 53309-2670 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 500mA |
| Depth | 5.1mm |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Mount | Surface Mount |
| Number of Circuits | 26 |
| Number of Contacts | 26 |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Pitch | 0.8mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 53309 |
| Termination | Solder |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 53309-2670 Datasheet
Download the complete datasheet for Molex 53309-2670 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

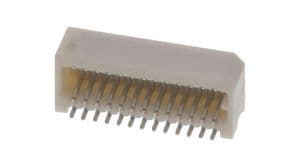

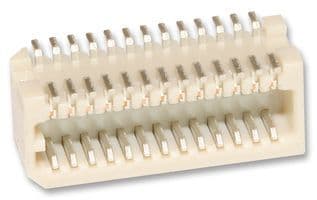

Product Images
