3-circuit, 1-row male header connector with a 2mm pitch, designed for right-angle, through-hole mounting. Features brass contacts with tin plating, a 2A current rating, and a 125V voltage rating. Constructed with natural colored, UL94 V-0 flammability rated material, operating between -40°C and 105°C. This lead-free, RoHS-compliant component utilizes male pin contacts for secure mating.
Voltage Rating125V
Current Rating2A
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Molex 53325-0360 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Molex 53325-0360 technical specifications.
General
| Color | Natural |
| Contact Material | Brass |
| Contact Mating Length | 0.135inch |
| Contact Plating | Tin |
| Contact Type | Male Pin |
| Current Rating | 2A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Not Halogen Free |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 2mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Mi II™ 53325 |
| Termination | Through Hole |
| Voltage Rating | 125V |
| DC Rated Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 53325-0360 Datasheet
Download the complete datasheet for Molex 53325-0360 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

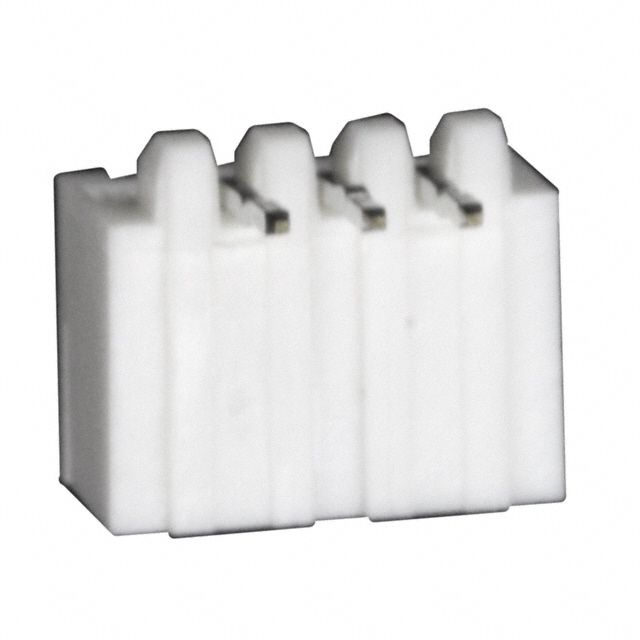

Product Images
