Surface mount board-to-board connector with a 1.25mm pitch, featuring 9 male blade pin contacts in a single row. This straight receptacle offers a 1A current rating and 125V DC voltage rating, with bronze contacts plated in tin. The natural, UL94 V-0 flammability rated housing ensures reliable performance from -40°C to 85°C. Supplied in tape and reel packaging for efficient assembly.
Voltage Rating125V
Current Rating1A
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Molex 53398-0971 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Molex 53398-0971 technical specifications.
General
| Color | White |
| Contact Gender | Male |
| Contact Material | Bronze, Tin |
| Contact Plating | Tin |
| Contact Type | Blade Pin |
| Current Rating | 1A |
| Depth | 3.7mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 9 |
| Number of Contacts | 9 |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Pitch | 1.25mm |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PicoBlade |
| Termination | Solder |
| Voltage Rating | 125V |
| DC Rated Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 53398-0971 Datasheet
Download the complete datasheet for Molex 53398-0971 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

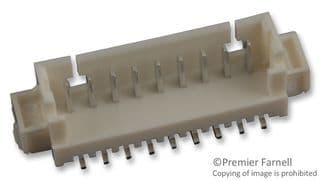

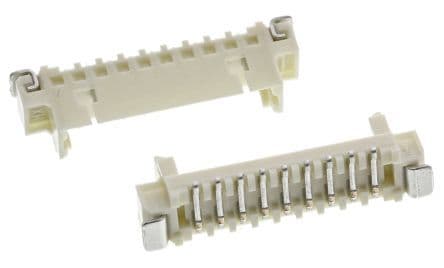

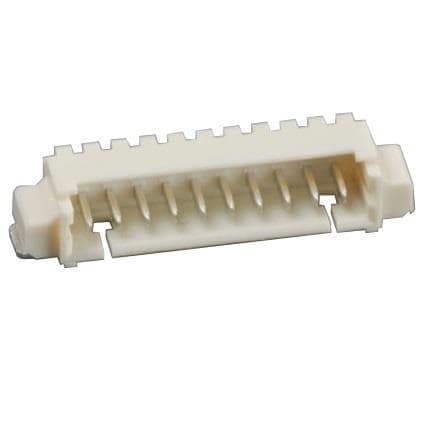

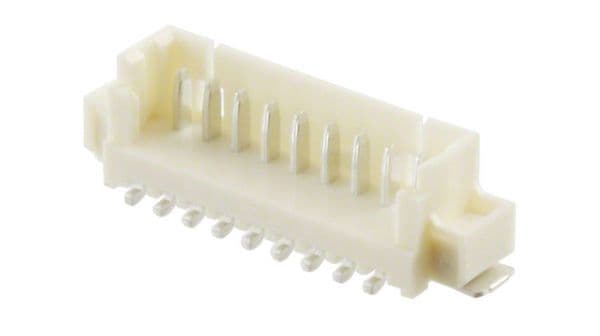

Product Images
