80-position, 2-row male header with 0.5mm pitch for board-to-board applications. Features brass contacts with gold plating, a 500mA current rating, and a 50V AC/5.05kV DC voltage rating. This surface mount component has a white, UL94 V-0 rated insulator and supports a 3mm mated stacking height. Operates within a -40°C to 105°C temperature range and is RoHS compliant.
Voltage Rating50V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 53748-0808 technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Depth | 4.3mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | White |
| Lead Free | Lead Free |
| Mated Stacking Heights | 3mm |
| Material | Brass |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 50V |
| Max Voltage Rating (DC) | 5.05kV |
| Mount | Surface Mount |
| Number of Circuits | 80 |
| Number of Contacts | 80 |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Pitch | 0.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 3.4mm |
| Series | SlimStack™ 53748 |
| Termination | Solder |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 53748-0808 Datasheet
Download the complete datasheet for Molex 53748-0808 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

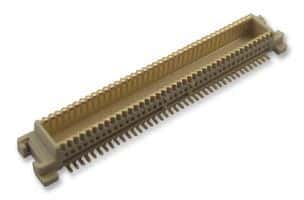

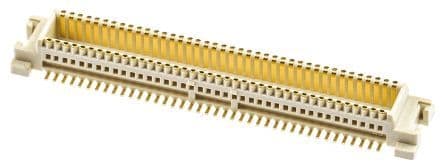

Product Images
