80-position, 2-row male header connector with a 0.5mm pitch and 1.87mm row spacing. Features brass contacts with gold plating, a 50V voltage rating, and a 500mA current rating. Designed for surface mount termination with a 4.2mm height and 22.3mm length. This vertical, straight plug is RoHS compliant and lead-free, operating within a -40°C to 105°C temperature range.
Voltage Rating50V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 53916-0808 technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 500mA |
| ELV | Compliant |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 4.2mm |
| Lead Free | Lead Free |
| Length | 22.3mm |
| Mated Stacking Heights | 4mm |
| Material | Brass |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 80 |
| Number of Contacts | 80 |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 1500 |
| Packaging | Bulk |
| Pitch | 0.5mm |
| Plating | Gold |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 1.87mm |
| Series | SlimStack™ 53916 |
| Stack Height | 4mm |
| Termination | SMD/SMT |
| Voltage Rating | 50V |
| Width | 3.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 53916-0808 Datasheet
Download the complete datasheet for Molex 53916-0808 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

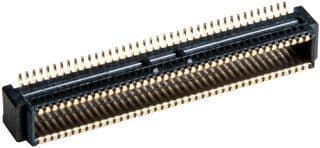

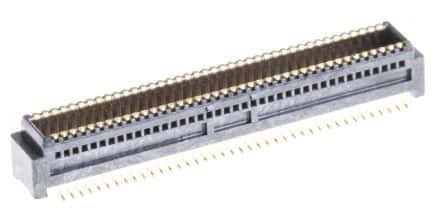

Product Images
