Vertical stacking board connector, receptacle gender, featuring a 0.5mm pitch and 2.5mm row spacing for 60 contacts across 2 rows. This surface mount component offers gold-plated bronze contacts, a 50V voltage rating, and a 500mA current rating. Operating within a -40°C to 85°C temperature range, it is RoHS compliant and supplied in tape and reel packaging.
Voltage Rating50V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 54102-0608 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Lead Free | Lead Free |
| Lead Pitch | 0.5mm |
| Mated Stacking Heights | 2.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 50V |
| Mount | Surface Mount |
| Number of Circuits | 60 |
| Number of Contacts | 60 |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 100 |
| Packaging | Tape and Reel |
| Pitch | 0.5mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 2.5mm |
| Series | SlimStack™ 54102 |
| Termination | SMD/SMT |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 54102-0608 Datasheet
Download the complete datasheet for Molex 54102-0608 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

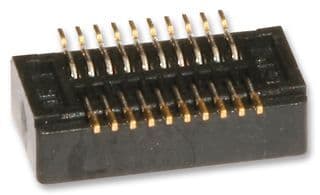

Product Images
