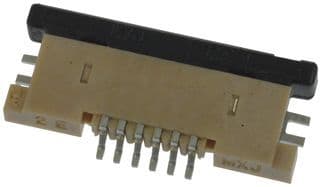

8-position, 0.5mm pitch right-angle FFC connector with bottom actuation. Features tin-plated bronze contacts and a polyphenylene actuator. Rated for 50V and 500mA, operating between -20°C and 85°C. Surface mount termination with a UL94 V-0 flammability rating.
Voltage Rating50V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 54548-0870 technical specifications.
General
Actuator Material
Polyphenylene
Contact Material
Bronze
Contact Plating
Tin
Current Rating
500mA
Depth
3.4mm
Flammability Rating
UL94 V-0
Housing Color
Black
Length
9.2mm
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Mount
Surface Mount
Number of Contacts
8
Number of Positions
8
Number of Rows
1
Orientation
Right Angle
Package Quantity
1
Packaging
Tape and Reel
Pitch
0.5mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
Easy-On™ 54548
Termination
Solder
Voltage Rating
50V
Wire/Cable Type
Straight
Compliance
RoHS
Compliant
