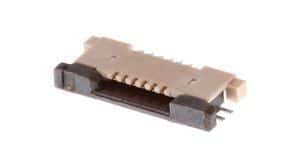

Right-angle FFC/FPC connector with 6 positions and 0.5mm pitch. Features top contact location with gold-plated bronze contacts and tin/gold plating. Rated for 50V and 500mA, operating between -20°C and 85°C. Surface mount termination with a polyphenylene actuator and UL94 V-0 flammability rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 54550-0671 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Molex 54550-0671 technical specifications.
| Actuator Material | Polyphenylene |
| Contact Location | Top |
| Contact Material | Gold, Bronze |
| Contact Plating | Tin, Gold |
| Current Rating | 500mA |
| Depth | 4.55mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Length | 8.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Pitch | 0.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Easy-On™ 54550 |
| Termination | SMD/SMT |
| Voltage Rating | 50V |
| Wire/Cable Type | Straight |
| RoHS | Compliant |
