Surface mount FFC/FPC board connector, ZIF receptacle with 8 circuits and 8 contacts. Features a 0.5mm pitch and right-angle orientation. Constructed with bronze contacts plated in gold, rated for 500mA current and 50V voltage. Operates within a temperature range of -20°C to 85°C. Supplied in tape and reel packaging.
Voltage Rating50V
Current Rating500mA
Quick Jump:
Technical Specifications
Molex 54550-0871 technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Current Rating
500mA
Depth
5mm
ELV
Compliant
Gender
Receptacle
Housing Color
Natural
Length
9.2mm
Material
Bronze
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Number of Circuits
8
Number of Contacts
8
Number of Positions
8
Number of Rows
1
Orientation
Right Angle
Package Quantity
3000
Packaging
Tape and Reel
Pitch
0.5mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
54550
Stackable
No
Termination
Solder
Voltage Rating
50V
Compliance
RoHS
Compliant
Datasheet
Molex 54550-0871 Datasheet
Download the complete datasheet for Molex 54550-0871 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

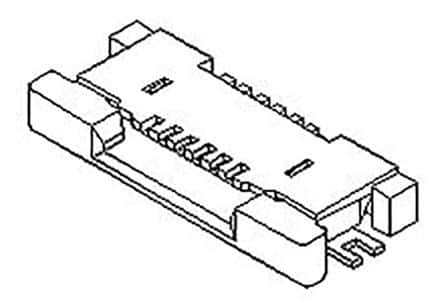

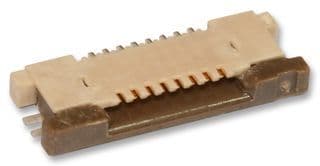

Product Images
