Molex
54550-1071
10-Position Right Angle Receptacle Header, 50V 500mA, 0.5mm Pitch, SMD/SMT, ELV Compliant
This 10-position right angle receptacle header is designed for board-to-board connections. It features a 50V voltage rating and 500mA current rating. The header is constructed from bronze with gold plating and has a 0.5mm pitch. It is compliant with ELV regulations and is available in a tape and reel packaging format. The operating temperature range is from -20°C to 85°C.
Voltage Rating50V
Current Rating500mA
Quick Jump:
Technical Specifications
Molex 54550-1071 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 500mA |
| ELV | Compliant |
| Gender | Receptacle |
| Material | Bronze |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Pitch | 0.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 54550 |
| Stackable | No |
| Termination | SMD/SMT |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 54550-1071 Datasheet
Download the complete datasheet for Molex 54550-1071 to view detailed technical specifications.
No datasheet is available for this part.

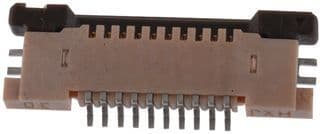

Product Images
