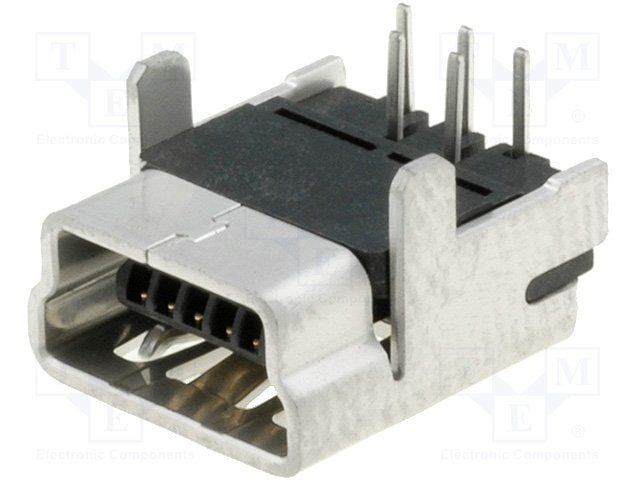

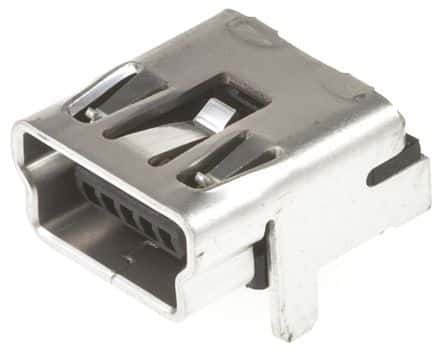

Right-angle receptacle connector with 5 contacts and 5 positions, designed for telecom and datacom applications. Features copper alloy contacts with gold plating, a 1A current rating, and supports USB 2.0 data rates up to 480Mbps. This shielded, lead-free component has a UL94 V-0 flammability rating and is RoHS compliant, suitable for through-hole or surface mount configurations. Operating temperature range is 0°C to 50°C, with a 30V voltage rating.
Voltage Rating30V
Current Rating1A
MountingThrough Hole, Horizontal, Surface Mount
Quick Jump:
Technical Specifications
Molex 54819-0519 technical specifications.
General
| Color | Black, Grey |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Current Rating | 1A |
| Data Rate | 480Mbps |
| Depth | 9mm |
| Features | Shielded |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 7.7mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole, Horizontal, Surface Mount |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 3600 |
| Packaging | Tray |
| Pitch | 0.8mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 54819 |
| Termination | Solder |
| USB Standard | USB 2.0 |
| Voltage Rating | 30V |
| DC Rated Voltage | 30V |
| Width | 6.9mm |
| Working Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 54819-0519 Datasheet
Download the complete datasheet for Molex 54819-0519 to view detailed technical specifications.
