6-contact, 1-row, right-angle PCB mount header connector with a 2mm pitch. Features brass contacts with tin plating, a 3A current rating, and a 250V voltage rating. Designed for through-hole mounting with solder termination and a locking mechanism. Rated UL94 V-0 for flammability and operates within a -25°C to 85°C temperature range.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 55935-0610 technical specifications.
General
| Color | White |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 3A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 600 |
| Packaging | Tray |
| Pitch | 2mm |
| Plating | Tin |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 55935 |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 55935-0610 Datasheet
Download the complete datasheet for Molex 55935-0610 to view detailed technical specifications.
No datasheet is available for this part.

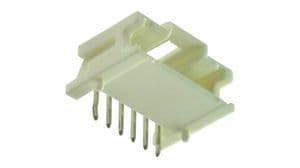

Product Images
