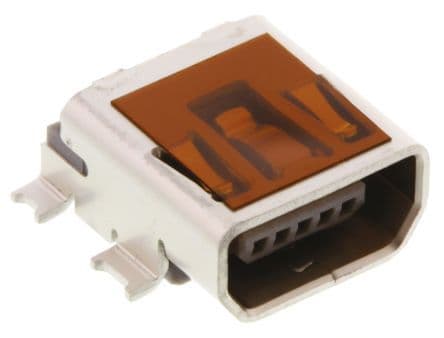

Right-angle, surface-mount receptacle for telecom and datacom applications. Features 5 contacts with gold-plated copper alloy construction, offering a 1A current rating and 480Mbps data rate. Designed with a 0.8mm pitch and a 30V voltage rating, this lead-free component boasts a UL94 V-0 flammability rating and operates within a 0°C to 85°C temperature range. Packaged on tape and reel for efficient assembly.
Voltage Rating30V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 56579-0576 technical specifications.
General
| Color | Grey |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Current Rating | 1A |
| Data Rate | 480Mbps |
| Depth | 9mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Grey |
| Lead Free | Lead Free |
| Length | 9.9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 30V |
| Max Voltage Rating (DC) | 3.03kV |
| Mount | Surface Mount |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 800 |
| Packaging | Tape and Reel |
| Pitch | 0.8mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 56579 |
| Termination | Solder |
| Voltage Rating | 30V |
| Voltage Rating (AC) | 30V |
| DC Rated Voltage | 30V |
| Width | 6.9mm |
| Working Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 56579-0576 Datasheet
Download the complete datasheet for Molex 56579-0576 to view detailed technical specifications.
