32-position, 4-row right-angle male fork terminal connector with a 12A current rating and 250V AC / 14V DC voltage rating. Features brass, copper alloy, and copper contacts with tin plating, suitable for through-hole mounting and solder termination. Operates within a temperature range of -40°C to 125°C, with a depth of 49mm, height of 24.9mm, and width of 59.91mm. This RoHS compliant component is packaged in trays of 96.
Current Rating12A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 64334-0100 technical specifications.
General
| Color | Black |
| Contact Material | Brass, Copper Alloy, Copper |
| Contact Plating | Tin |
| Current Rating | 12A |
| Depth | 49mm |
| ELV | Compliant |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Height | 24.9mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Circuits | 32 |
| Number of Contacts | 32 |
| Number of Ports | 1 |
| Number of Positions | 32 |
| Number of Rows | 4 |
| Orientation | Right Angle |
| Package Quantity | 96 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | CMC |
| Termination | Solder |
| DC Rated Voltage | 14V |
| Width | 59.91mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 64334-0100 Datasheet
Download the complete datasheet for Molex 64334-0100 to view detailed technical specifications.
No datasheet is available for this part.

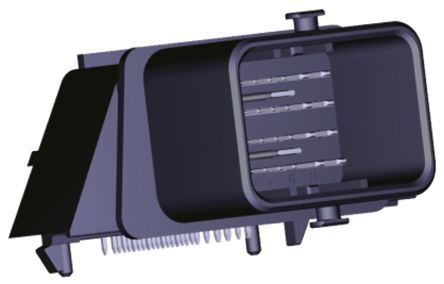

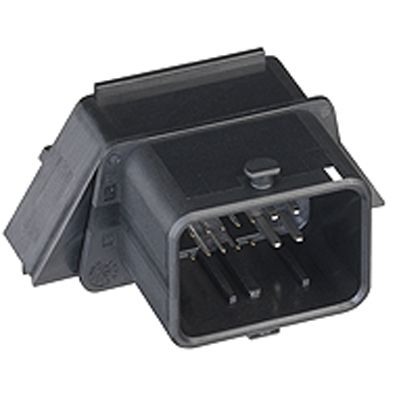

Product Images
