Right-angle USB 2.0 receptacle with 4 female contacts and a 4-position, 2-row configuration. Features gold-plated bronze contacts, solder termination, and a 1.5A current rating with a 30V voltage rating. This through-hole mount connector has a 2.5mm pitch and a black housing, meeting UL94 V-0 flammability standards and RoHS compliance. Operating temperature range is 0°C to 50°C.
Voltage Rating30V
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 67068-8001 technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Depth | 17mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Insulation Color | Black |
| Length | 12mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 30V |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 1200 |
| Packaging | Tray |
| Pitch | 2.5mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 67068 |
| Termination | Solder |
| USB Standard | USB 2.0 |
| Voltage Rating | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 67068-8001 Datasheet
Download the complete datasheet for Molex 67068-8001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

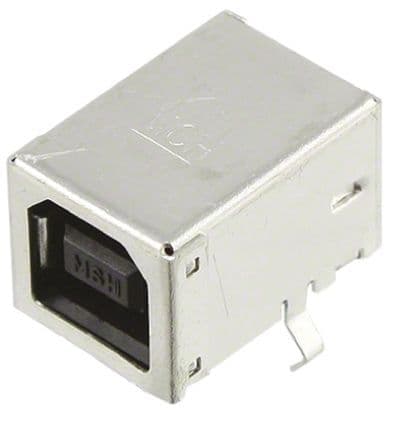

Product Images
