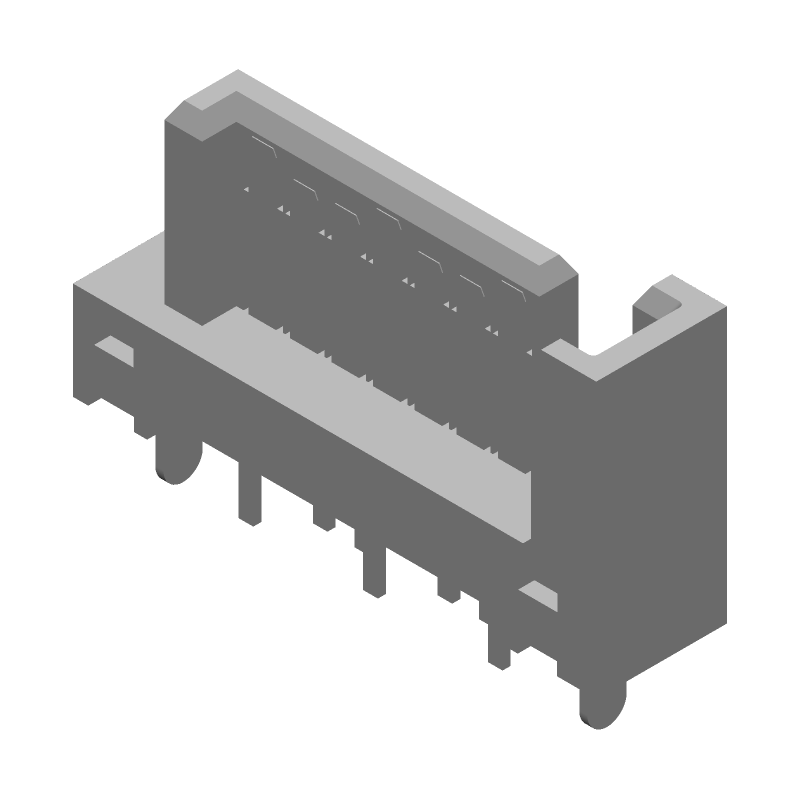

7-position, 1-row male header connector with a 1.27mm pitch and straight, through-hole mounting orientation. Features copper alloy contacts with gold plating, a 1.5A current rating, and a 15V DC voltage rating. This black, UL94 V-0 flammability rated connector is designed for board-to-board applications, offering a solder termination and a locking mechanism. It supports 500 mating cycles and operates within a temperature range of -25°C to 85°C.
Sign in to ask questions about the Molex 67491-0020 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Molex 67491-0020 technical specifications.
| Color | Black |
| Contact Material | Copper Alloy, Brass |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Depth | 4mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Lead Free | Lead Free |
| Lead Pitch | 4.25mm |
| Length | 16mm |
| Mating Cycles | 500 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 15V |
| Mount | Through Hole, Board |
| Number of Circuits | 7 |
| Number of Contacts | 7 |
| Number of Ports | 1 |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tray |
| Panel Thickness | 1.6mm |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 67491 |
| Termination | Solder |
| Voltage Rating | 15V |
| DC Rated Voltage | 15V |
| Width | 4mm |
| Working Voltage | 15V |
| RoHS | Compliant |
