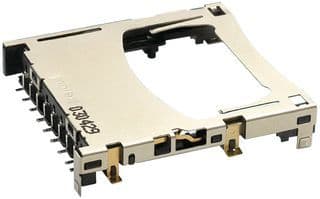

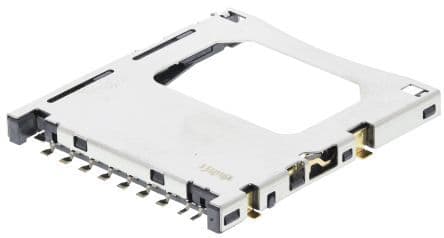

9-position, 9-contact right-angle female modular connector with a 1.62mm pitch. Features stainless steel and brass contacts with gold plating, rated for 250V DC and 500mA. Surface mount termination with solder connection, operating temperature range of -25°C to 85°C. Low halogen and RoHS compliant, supplied in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 67600-8001 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Molex 67600-8001 technical specifications.
| Contact Material | Stainless Steel, Brass |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Depth | 30.5mm |
| Gender | Female |
| Halogen Free | Low Halogen |
| Length | 27.9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 250V |
| Mount | Standard, Surface Mount |
| Number of Circuits | 9 |
| Number of Contacts | 9 |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Pitch | 1.62mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 67600 |
| Termination | Solder |
| DC Rated Voltage | 250V |
| Width | 30.5mm |
| RoHS | Compliant |
