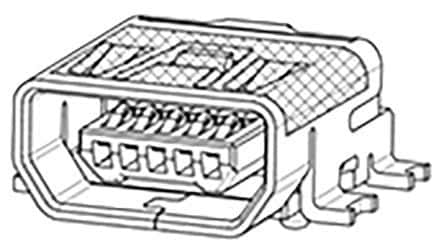

Mini USB 2.0 Type AB receptacle with 5 positions and 5 contacts, featuring a 0.8mm pitch. This right-angle, surface-mount connector offers a 1A current rating and 30V voltage rating. Constructed with copper alloy and copper contacts plated in gold, it boasts a UL94 V-0 flammability rating. Designed for tape and reel packaging, this component operates within a temperature range of 0°C to 50°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 67803-8020 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Molex 67803-8020 technical specifications.
| Color | Grey |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Current Rating | 1A |
| Depth | 9mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Length | 9.9mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Orientation | Right Angle |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Pitch | 0.8mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 67803 |
| Termination | SMD/SMT |
| USB Standard | USB 2.0 |
| Voltage Rating | 30V |
| Weight | 0.024163oz |
| RoHS | Compliant |
Download the complete datasheet for Molex 67803-8020 to view detailed technical specifications.
