3-position, 1-row male header with straight orientation and 2.54mm pitch. Features a black, UL94 V-0 flammability rated housing with a 0606 package/case. Designed for cable mounting with crimp termination, operating within a -40°C to 105°C temperature range. UL and CSA approved, lead-free construction.
Package0606
MountingCable
Quick Jump:
Technical Specifications
Molex 70107-0002 technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | 0606 |
| Color | Black |
| Contact Gender | Male |
| Depth | 24.26mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Lead Free | Lead Free |
| Length | 9.65mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | SL |
| Termination | Crimp |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 70107-0002 Datasheet
Download the complete datasheet for Molex 70107-0002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

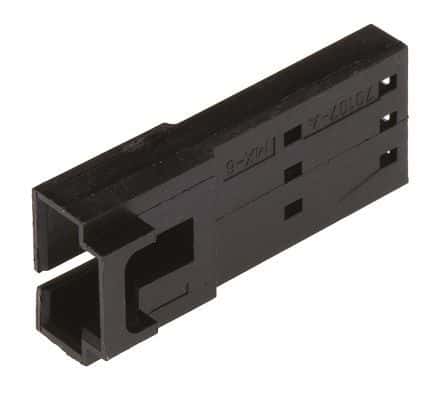

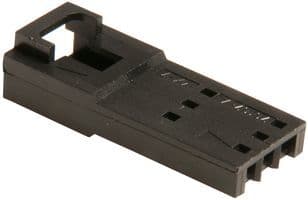

Product Images
