6-position, 1-row female connector assembly tool with a 2.54mm pitch. Features straight orientation, crimp termination, and a black housing. Rated UL94 V-0 for flammability and operates within a -40°C to 105°C temperature range. Approvals include UL and CSA, with lead-free construction.
MountingCable
Quick Jump:
Technical Specifications
Molex 70107-0005 technical specifications.
General
| Approvals | UL, CSA |
| Color | Black |
| Contact Gender | Female |
| Depth | 24.26mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Height | 6mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 17.27mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | SL |
| Termination | Crimp |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 70107-0005 Datasheet
Download the complete datasheet for Molex 70107-0005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

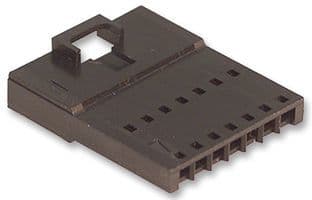

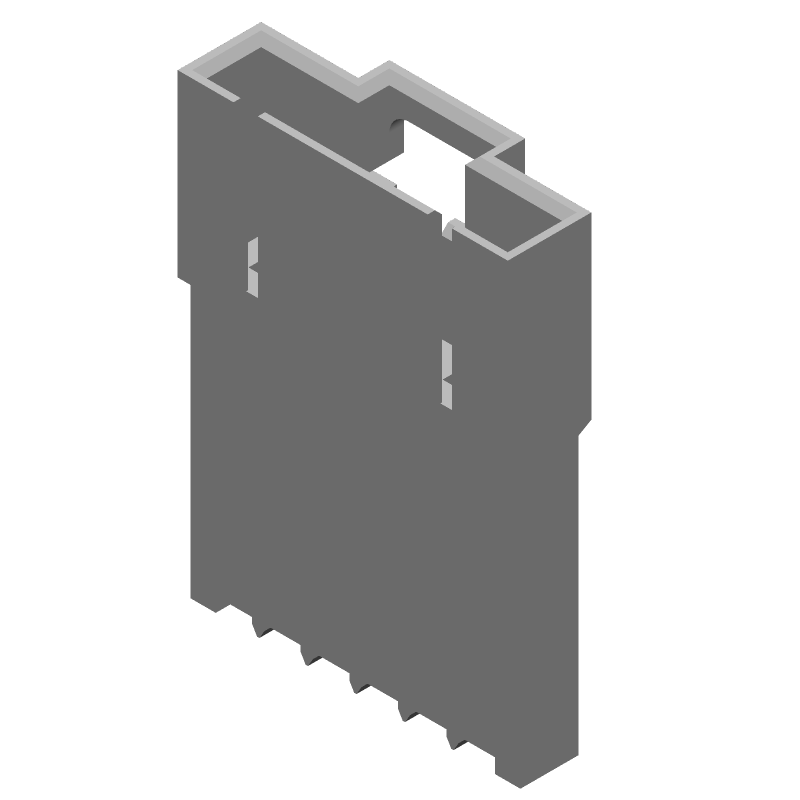

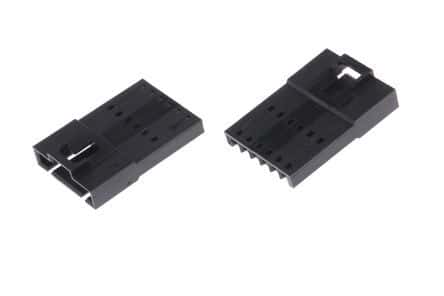

Product Images
