This 11-contact brass header features a current rating of 3A and a voltage rating of 250V. It is designed for through-hole mounting and has a black housing color. The header is compliant with ELV and RoHS regulations, and has a maximum operating temperature of 105°C and a minimum operating temperature of -40°C.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 70543-0010 technical specifications.
General
| Contact Material | Bronze, Copper |
| Contact Plating | Gold |
| Current Rating | 3A |
| ELV | Compliant |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Black |
| Lead Free | Lead Free |
| Material | Brass |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 11 |
| Number of Contacts | 11 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Pitch | 2.54mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SL |
| Termination | Solder |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 70543-0010 Datasheet
Download the complete datasheet for Molex 70543-0010 to view detailed technical specifications.
No datasheet is available for this part.

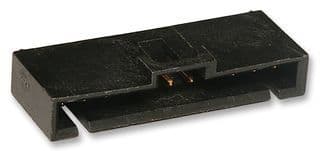

Product Images
