5-position, 1-row shrouded header with 2.54mm pitch. Features top entry, vertical orientation, and through-hole termination. Constructed with brass housing and gold-plated bronze contacts. Rated for 3A current and 250V DC voltage, operating between -40°C and 105°C. UL94 V-0 flammability rating.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 70545-0039 technical specifications.
General
| Color | Black |
| Contact Gender | Male |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 3A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Material | Brass |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 1248 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 70545 |
| Termination | Through Hole |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 70545-0039 Datasheet
Download the complete datasheet for Molex 70545-0039 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

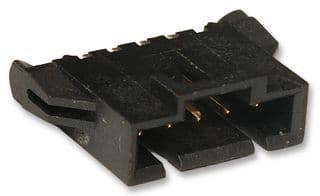

Product Images
