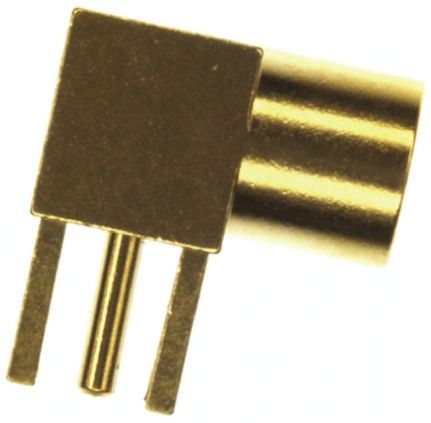

Right-angle RF connector featuring a female jack with a single contact. Designed for board mounting with solder termination, this connector boasts a 50 Ohm impedance and operates up to 6GHz. Constructed with a zinc alloy and brass body plated in gold, and copper contacts also plated in gold, it offers low halogen and lead-free compliance. The Teflon insulation ensures reliable performance in a bulk package.
Checking distributor stock and pricing after the page loads.
Molex 73415-1001 technical specifications.
| Body Material | ZINC ALLOY, Brass |
| Body Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 3.5mm |
| Gender | Female |
| Halogen Free | Low Halogen |
| Height | 3.81mm |
| Impedance | 50R |
| Insulation Material | Teflon |
| Lead Free | Lead Free |
| Length | 6.49mm |
| Max Frequency | 6GHz |
| Mount | Through Hole, PCB |
| Operating Frequency | N/A |
| Orientation | Right Angle |
| Package Quantity | 1600 |
| Packaging | Bulk |
| Plating | Gold |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 73415 |
| Termination | Solder |
| RoHS | Compliant |
