Technical Specifications
Molex 74320-3004 technical specifications.
General
| Color | Natural |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Features | Shielded |
| Gender | Receptacle |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 40V |
| Mount | Through Hole |
| Number of Circuits | 29 |
| Number of Contacts | 29 |
| Number of Ports | 1 |
| Number of Rows | 3 |
| Orientation | Vertical |
| Packaging | Tray |
| Pitch | 1.91mm |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Solder |
| DC Rated Voltage | 40V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 74320-3004 Datasheet
Download the complete datasheet for Molex 74320-3004 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

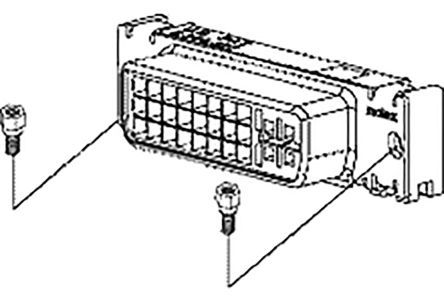

Product Images
