24-position, right-angle receptacle connector with 29 contacts, featuring a 1.91mm pitch and solder termination. This shielded, through-hole mount component offers a 3A current rating and 40V AC voltage rating, constructed with copper alloy contacts and gold plating. Operating within a -20°C to 85°C temperature range, it is designed for telecom and datacom applications.
Voltage Rating40V
Current Rating3A
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
Molex 74320-9014 technical specifications.
General
| Color | Natural |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Current Rating | 3A |
| Depth | 18.03mm |
| Features | Shielded |
| Gender | Receptacle |
| Length | 36.83mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 40V |
| Mount | Through Hole, Panel |
| Number of Circuits | 29 |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Number of Positions | 24 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 1.91mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 74320 |
| Termination | Through Hole |
| Voltage Rating | 40V |
| Voltage Rating (AC) | 40V |
| Width | 9.91mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 74320-9014 Datasheet
Download the complete datasheet for Molex 74320-9014 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

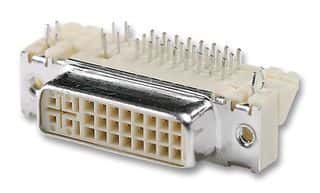

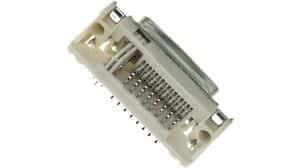

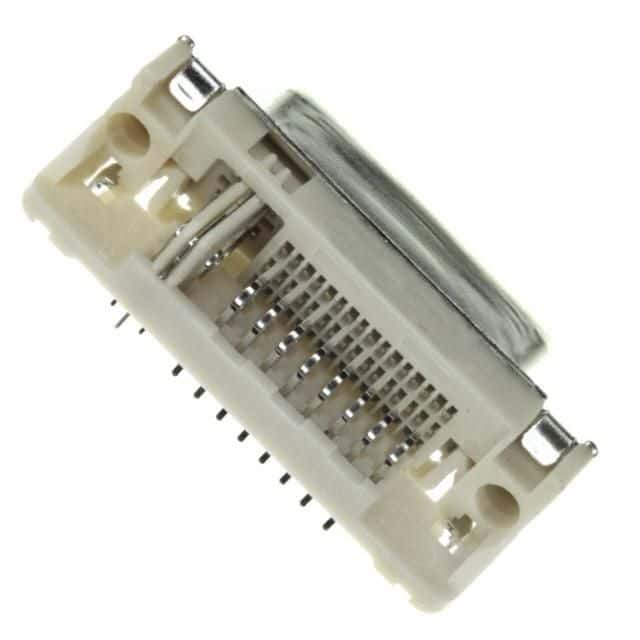

Product Images
