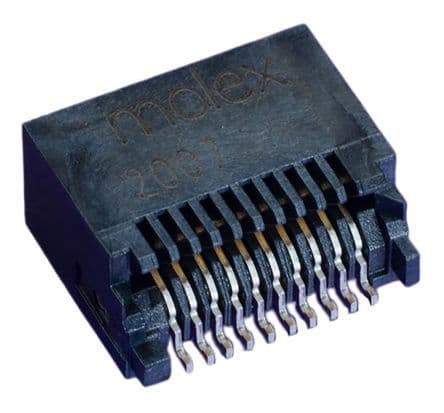

20-position, 2-row female right-angle receptacle with 0.8mm pitch. Features a black thermoplastic housing, copper alloy contacts with gold plating, and a surface mount terminal. Rated for 30V AC/DC, 500mA current, and operates from -40°C to 85°C. This low halogen, lead-free component is UL94 V-0 flammability rated and RoHS compliant.
Voltage Rating30V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 74441-0010 technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Depth | 8.23mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Halogen Free | Low Halogen |
| Housing Color | Black |
| Lead Free | Lead Free |
| Material | Thermoplastic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 30V |
| Max Voltage Rating (DC) | 3.03kV |
| Mount | Surface Mount |
| Number of Circuits | 20 |
| Number of Contacts | 20 |
| Number of Ports | 1 |
| Number of Positions | 20 |
| Number of Positions Loaded | 20 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Pitch | 0.8mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 74441 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 30V |
| Voltage Rating (AC) | 30V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 74441-0010 Datasheet
Download the complete datasheet for Molex 74441-0010 to view detailed technical specifications.
No datasheet is available for this part.
