7-position, 5-row right-angle receptacle with a 1.27mm pitch, designed for high-speed data transmission. Features copper alloy contacts with gold plating for reliable conductivity, a 500mA current rating, and a 30V DC voltage rating. This shielded, female connector offers both through-hole and surface mount capabilities, with a UL94 V-0 flammability rating and a natural housing color. Operating temperature range is -10°C to 60°C, and it is lead-free and RoHS compliant.
Current Rating500mA
MountingThrough Hole, Surface Mount
Quick Jump:
Technical Specifications
Molex 74703-0007 technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Features | Shielded |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole, Surface Mount |
| Mounting Style | PLUG |
| Number of Circuits | 100 |
| Number of Contacts | 7 |
| Number of Positions | 7 |
| Number of Rows | 5 |
| Orientation | Right Angle |
| Package Quantity | 10 |
| Packaging | Tape and Reel |
| Pitch | 1.27mm |
| RoHS Compliant | Yes |
| Series | 74703 |
| Shielding | Shielded |
| Termination | Solder |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 74703-0007 Datasheet
Download the complete datasheet for Molex 74703-0007 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

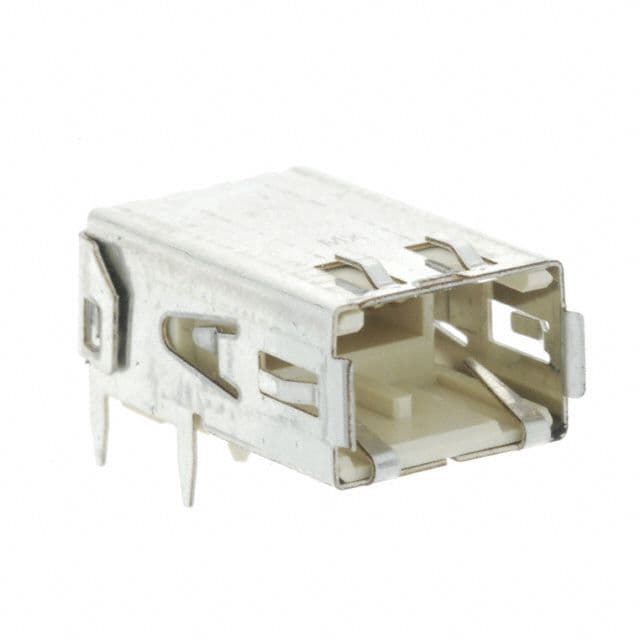

Product Images
