Right-angle, surface-mount receptacle for 68 positions and 68 circuits. Features copper alloy contacts with gold plating, a 0.8mm pitch, and a 500mA current rating. Constructed from UL94 V-0 rated thermoplastic, this low-halogen, lead-free component operates between -40°C and 80°C with a 30V AC voltage rating. Designed for solder termination, it offers a 30.2mm length and 11.5mm depth.
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 75586-0007 technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Depth | 11.5mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Length | 30.2mm |
| Material | Thermoplastic |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 30V |
| Max Voltage Rating (DC) | 3.03kV |
| Mount | Surface Mount |
| Number of Circuits | 68 |
| Number of Contacts | 68 |
| Number of Ports | 1 |
| Number of Positions | 68 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 550 |
| Packaging | Tape and Reel |
| Pitch | 0.8mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | iPass PCI Express 75586 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating (AC) | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 75586-0007 Datasheet
Download the complete datasheet for Molex 75586-0007 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

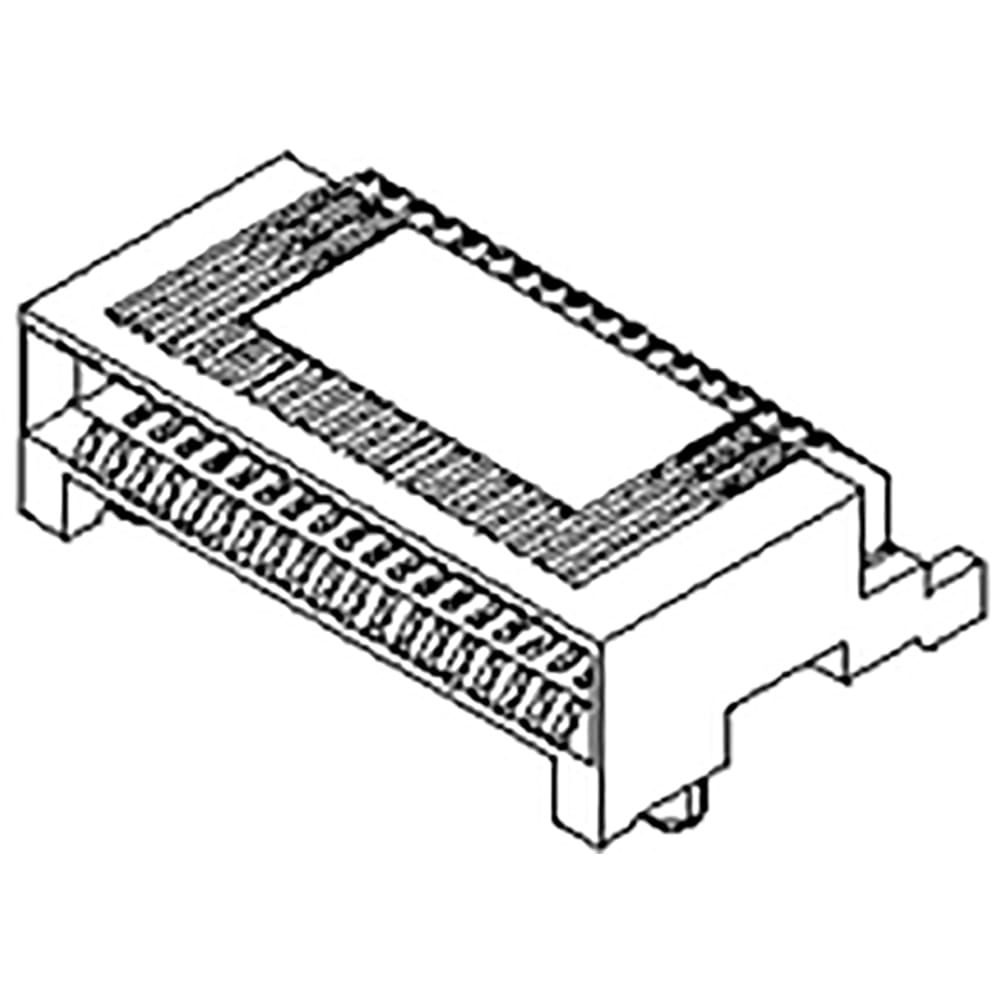

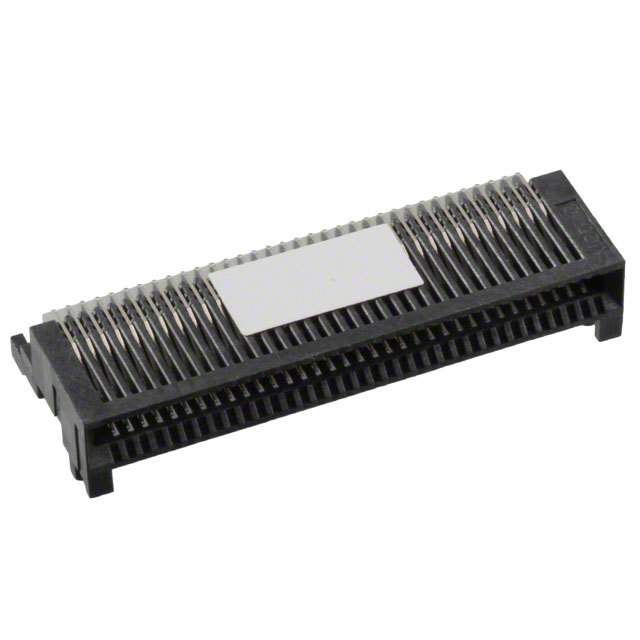

Product Images
