Technical Specifications
Molex 780011200 technical specifications.
General
| Package/Case | 200 |
| Color | Black |
| Contact Material | Bronze, Brass, Copper Alloy, Copper |
| Contact Plating | Gold |
| Current Rating | 1A |
| Gender | Receptacle |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -10°C |
| Mount | Board |
| Number of Circuits | 200 |
| Number of Contacts | 200 |
| Number of Positions | 200 |
| Number of Rows | 15 |
| Orientation | Right Angle |
| Package Quantity | 12 |
| Packaging | Tray |
| Pitch | 0.6mm |
| Reach SVHC Compliant | Unknown |
| Series | 78001 |
| Termination | SMD/SMT |
| Voltage Rating | 30V |
| Voltage Rating (AC) | 30V |
| Working Voltage | 1.8V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 780011200 Datasheet
Download the complete datasheet for Molex 780011200 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

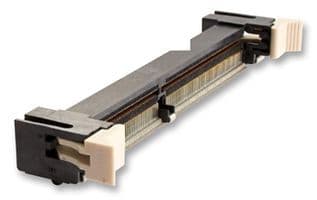

Product Images
