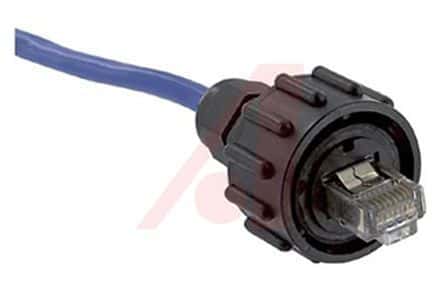

Shielded, straight male plug connector with 8 contacts and 8 loaded positions, designed for telecom and datacom applications. Features gold-plated bronze contacts with a 1.5A current rating and 125V voltage rating. This UL94 V-0 rated connector offers IP67 protection and a mating cycle of 500, suitable for cable or panel mounting with round wire. Operating temperature range is -40°C to 60°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 84700-0002 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Depth | 32.5mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Length | 53.1mm |
| Mating Cycles | 500 |
| Max Current Rating | 1.5A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -40°C |
| Mount | Cable, Panel |
| Number of Conductors | 8 |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Positions Loaded | 8 |
| Orientation | Straight |
| Package Quantity | 250 |
| Packaging | Bulk |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 84700 |
| Shielding | Shielded |
| Termination | IDC |
| Voltage Rating | 125V |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Width | 32.5mm |
| Wire/Cable Type | Round |
| RoHS | Compliant |
