Shielded, right-angle RJ45 jack with 1 x 1 port configuration, featuring 8 positions and 8 contacts (8P8C) for Cat5e performance. This female connector offers through-hole mounting with a 1.27mm pitch and tin-plated bronze/brass contacts. Rated for 1.5A current and 125V voltage, it operates within a temperature range of -40°C to 85°C. The black housing and black color ensure a robust and compliant solution.
Voltage Rating125V
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 85505-5002 technical specifications.
General
| Color | Black |
| Contact Material | Bronze, Brass |
| Contact Plating | Tin |
| Current Rating | 1.5A |
| Depth | 18.8mm |
| Direction | Down |
| Gender | Female |
| Housing Color | Black |
| Length | 16.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions Loaded | 8 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Tape and Reel |
| Pitch | 1.27mm |
| Plating | Tin |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Termination | Through Hole |
| Voltage Rating | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 85505-5002 Datasheet
Download the complete datasheet for Molex 85505-5002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

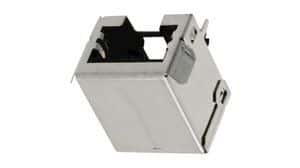

Product Images
