8-position, 8-contact female modular connector with a straight, through-hole solder termination. Features gold-plated bronze contacts, a 1.5A current rating, and a 125V voltage rating. This shielded, low-halogen thermoplastic connector operates between -40°C and 80°C and boasts a UL94 V-0 flammability rating. Designed for telecom and datacom applications, it includes a locking mechanism.
Voltage Rating125V
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 85508-5001 technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Current Rating
1.5A
Depth
16.5mm
Flammability Rating
UL94 V-0
Gender
Female
Halogen Free
Low Halogen
Height
16.5mm
Housing Color
Black
Insulation Material
Thermoplastic
Length
16.6mm
Max Current Rating
1.5A
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Contacts
8
Number of Ports
1
Number of Positions
8
Number of Positions Loaded
8
Orientation
Straight
Package Quantity
2016
Packaging
Tray
Pitch
2.54mm
Plating
Tin
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
85508
Shielding
Shielded
Termination
Through Hole
Voltage Rating
125V
Width
16.6mm
Compliance
RoHS
Compliant
Datasheet
Molex 85508-5001 Datasheet
Download the complete datasheet for Molex 85508-5001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

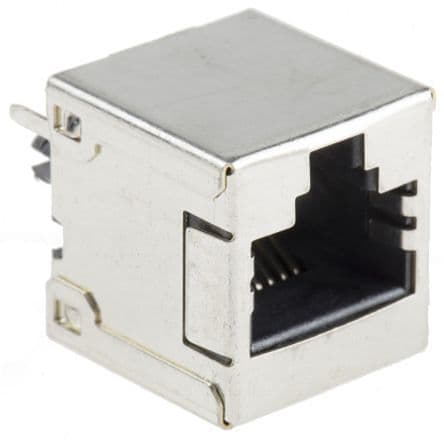

Product Images
