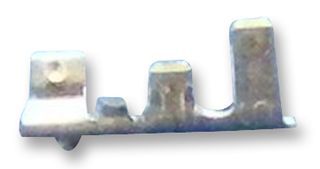

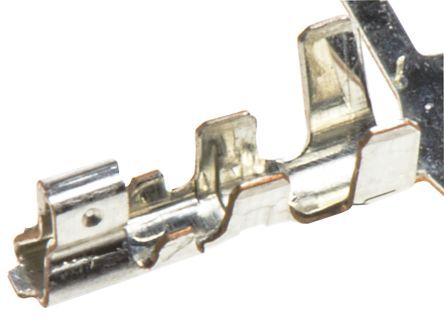

Female receptacle for signal applications, featuring a straight, unshielded crimp termination. Constructed with bronze contacts plated in tin and copper, this component supports a current rating of 2.5A and a voltage rating of 250V. Operating within a temperature range of -55°C to 105°C, it is designed for wire gauges from 30AWG to 24AWG. The component is RoHS compliant and lead-free, with a 1.5mm pitch and dimensions of 4.94mm length, 2.12mm depth, and 2.07mm height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 87421-0000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Molex 87421-0000 technical specifications.
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Tin, Copper |
| Contact Type | Signal |
| Current Rating | 2.5A |
| Depth | 2.12mm |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 2.07mm |
| Lead Free | Lead Free |
| Length | 4.94mm |
| Max Current Rating | 2.5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Cable |
| Number of Circuits | 10 |
| Number of Contacts | 1 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Tape and Reel |
| Pitch | 1.5mm |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Pico-SPOX™ 87421 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 30V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 30AWG |
| Wire/Cable Gauge | 30AWG |
| RoHS | Compliant |
