Rectangular power connector featuring 4 male contacts with brass construction and tin plating. This through-hole mount plug offers a 4.2mm pitch and row spacing, with a right-angle orientation. Rated for 600V and 8A, it operates within a -40°C to 105°C temperature range and meets UL94 V-0 flammability standards.
Package0402
Voltage Rating600V
Current Rating8A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 87427-0402 technical specifications.
General
| Package/Case | 0402 |
| Color | Natural |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 8A |
| Flammability Rating | UL94 V-0 |
| Glow Wire Compliant | Non-compliant |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 1740 |
| Packaging | Tray |
| Pitch | 4.2mm |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 4.2mm |
| Series | 87427 |
| Termination | Through Hole |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 87427-0402 Datasheet
Download the complete datasheet for Molex 87427-0402 to view detailed technical specifications.
No datasheet is available for this part.

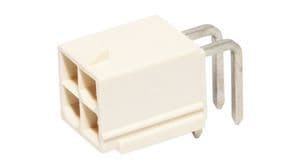

Product Images
