Rectangular power connector with 4 contacts, male gender, and solder terminal termination. Features a 13A current rating and 600V voltage rating (AC/DC). Constructed with brass contacts plated in tin, housed in natural colored, UL94 V-0 flammability rated material. Operating temperature range is -40°C to 105°C.
Voltage Rating600V
Current Rating13A
Quick Jump:
Technical Specifications
Molex 87427-0442 technical specifications.
General
| Color | Natural |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 13A |
| Depth | 11.4mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Length | 10.8mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 300 |
| Packaging | Tray |
| Pitch | 4.2mm |
| RoHS Compliant | Yes |
| Row Spacing | 4.2mm |
| Series | 87427 |
| Termination | Solder |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 87427-0442 Datasheet
Download the complete datasheet for Molex 87427-0442 to view detailed technical specifications.
No datasheet is available for this part.

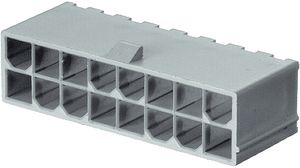

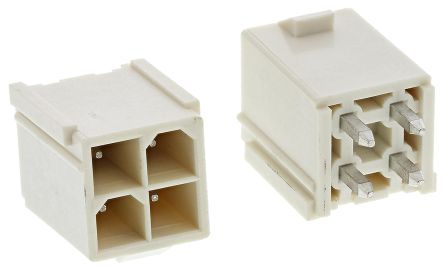

Product Images
