2-position shrouded header with a 1.5mm pitch, designed for vertical surface mount (SMD/SMT) termination. Features brass contacts with tin plating, a 3A current rating, and a 350V DC voltage rating. Constructed from UL94 V-0 rated nylon in a natural color housing, this male connector operates within a -55°C to 105°C temperature range. Supplied in tape and reel packaging.
Voltage Rating350V
Current Rating3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 87437-0243 technical specifications.
General
| Color | Natural |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 3A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Beige |
| Lead Free | Lead Free |
| Material | Nylon |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Pitch | 1.5mm |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 87437 |
| Termination | SMD/SMT |
| Voltage Rating | 350V |
| DC Rated Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 87437-0243 Datasheet
Download the complete datasheet for Molex 87437-0243 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

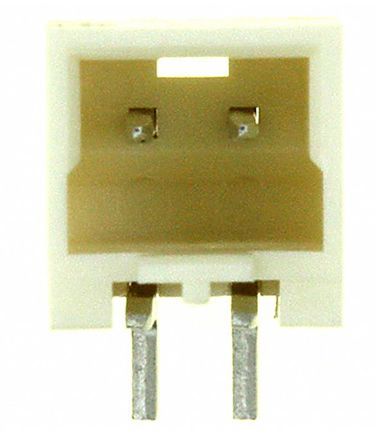

Product Images
