Shrouded header, right-angle surface mount connector with 2 positions and 1 row. Features a 1.5mm pitch, 2.5A current rating, and 350V DC voltage rating. Male pin contacts made of brass with tin plating and a mating length of 0.106 inches. Nylon insulation in beige, with a natural colored housing. Operates from -55°C to 105°C and is UL94 V-0 flammability rated.
Voltage Rating250V
Current Rating2.5A
MountingSurface Mount, Board
Quick Jump:
Technical Specifications
Molex 87438-0243 technical specifications.
General
| Color | Natural |
| Contact Finish - Mating | TIN |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Mating Length | 0.106inch |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 2.5A |
| Depth | 5.75mm |
| DIN Conformance | No |
| Filter Feature | No |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Beige |
| IEC Conformance | No |
| Insulation Color | Beige |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Manufacturer Series | 87438 |
| Material | Nylon |
| Max Operating Temperature | 105°C |
| Max Voltage Rating (AC) | 350V |
| MIL Conformance | No |
| Min Operating Temperature | -55°C |
| Mixed Contacts | No |
| Mount | Surface Mount, Board |
| Mounting Style | RIGHT ANGLE |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Number of Rows Loaded | 1 |
| Option | General Purpose |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Pitch | 1.5mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Pico-SPOX |
| Termination | Solder |
| Voltage Rating | 250V |
| DC Rated Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 87438-0243 Datasheet
Download the complete datasheet for Molex 87438-0243 to view detailed technical specifications.
No datasheet is available for this part.

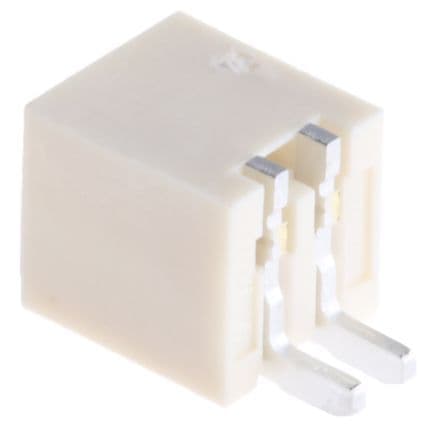

Product Images
