15-position, 1.5mm pitch female socket connector housing designed for free hanging or cable mounting. Features a straight, single-row orientation with a 2.5A current rating and a maximum operating temperature of 105°C. This low halogen, lead-containing component is RoHS compliant and has a natural housing color.
Current Rating2.5A
MountingFree Hanging, Cable, Board
Quick Jump:
Technical Specifications
Molex 87439-1500 technical specifications.
General
| Color | Natural |
| Contact Gender | Female |
| Contact Type | Female Socket |
| Current Rating | 2.5A |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | Natural |
| Lead Free | Contains Lead |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable, Board |
| Number of Contacts | 15 |
| Number of Positions | 15 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Bulk |
| Pitch | 1.5mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Pico-SPOX™ 87439 |
| Termination | Crimp |
| Width | 3.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 87439-1500 Datasheet
Download the complete datasheet for Molex 87439-1500 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

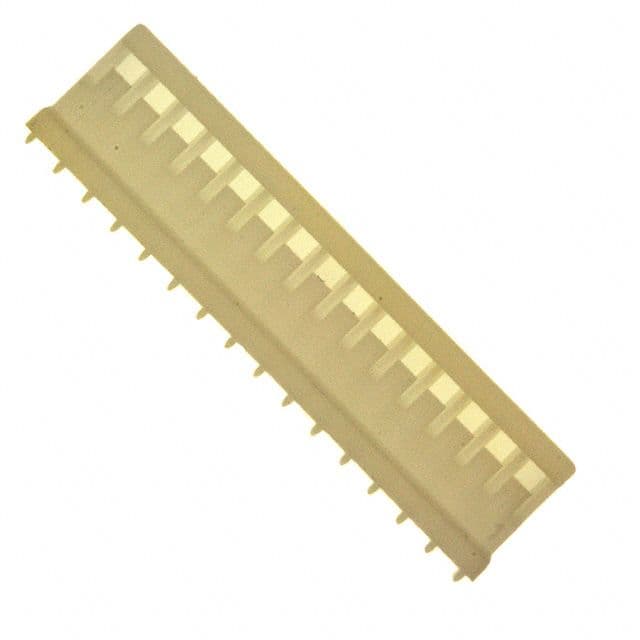

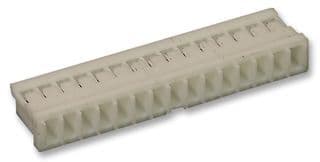

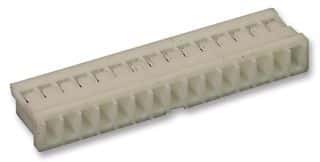

Product Images
