20-position, 2-row right-angle receptacle with a 2mm pitch. Features female copper alloy contacts with gold plating, rated for 1A and 125V. Designed for surface mount or cable applications, utilizing Insulation Displacement Termination (IDT) for 28AWG wire. Operates within a temperature range of -20°C to 85°C, with a black housing and RoHS compliance.
Voltage Rating125V
Current Rating1A
MountingSurface Mount, Cable
Quick Jump:
Technical Specifications
Molex 87568-2093 technical specifications.
General
Color
Black
Contact Gender
Female
Contact Material
Copper, Copper Alloy
Contact Plating
Gold
Current Rating
1A
Gender
Receptacle
Glow Wire Compliant
Non-compliant
Housing Color
Black
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Mount
Surface Mount, Cable
Number of Circuits
20
Number of Contacts
20
Number of Positions
20
Number of Rows
2
Orientation
Right Angle
Package Quantity
1680
Packaging
Tray
Pitch
2mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Milli-Grid
Termination
IDT
Voltage Rating
125V
Wire/Cable Gauge
28AWG
Compliance
RoHS
Compliant
Datasheet
Molex 87568-2093 Datasheet
Download the complete datasheet for Molex 87568-2093 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

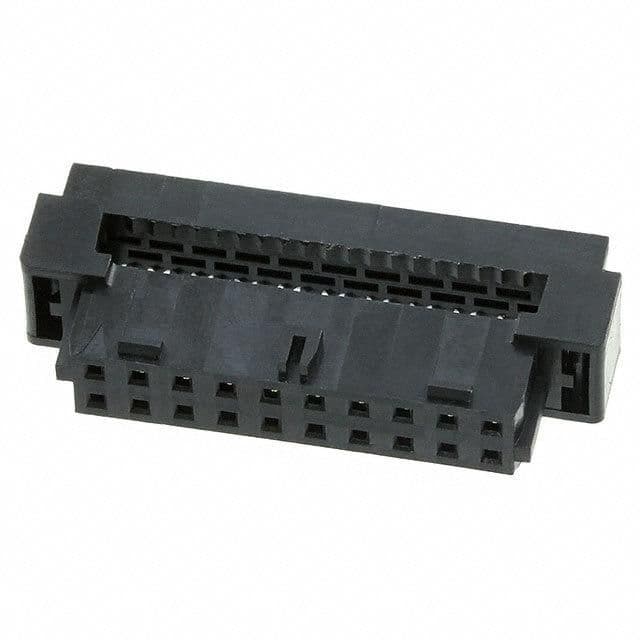

Product Images
