18-position, 2-row male board connector with a 2mm pitch. Features straight, solder termination with gold-plated brass/bronze contacts and a 2A current rating. Black, UL94 V-0 rated insulator housing with a locking mechanism. Through-hole mount, vertical orientation, operating temperature range of -55°C to 105°C, and 125V DC rated voltage.
Voltage Rating125V
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 87831-1820 technical specifications.
General
| Color | Black |
| Contact Material | Brass, Bronze |
| Contact Plating | Gold |
| Current Rating | 2A |
| Depth | 6.3mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Height | 6.4mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 20.65mm |
| Max Current Rating | 2A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Circuits | 18 |
| Number of Contacts | 18 |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 2600 |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 87831 |
| Shrouded | Yes (With) |
| Termination | Solder |
| Voltage Rating | 125V |
| DC Rated Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 87831-1820 Datasheet
Download the complete datasheet for Molex 87831-1820 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

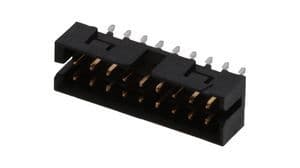

Product Images
