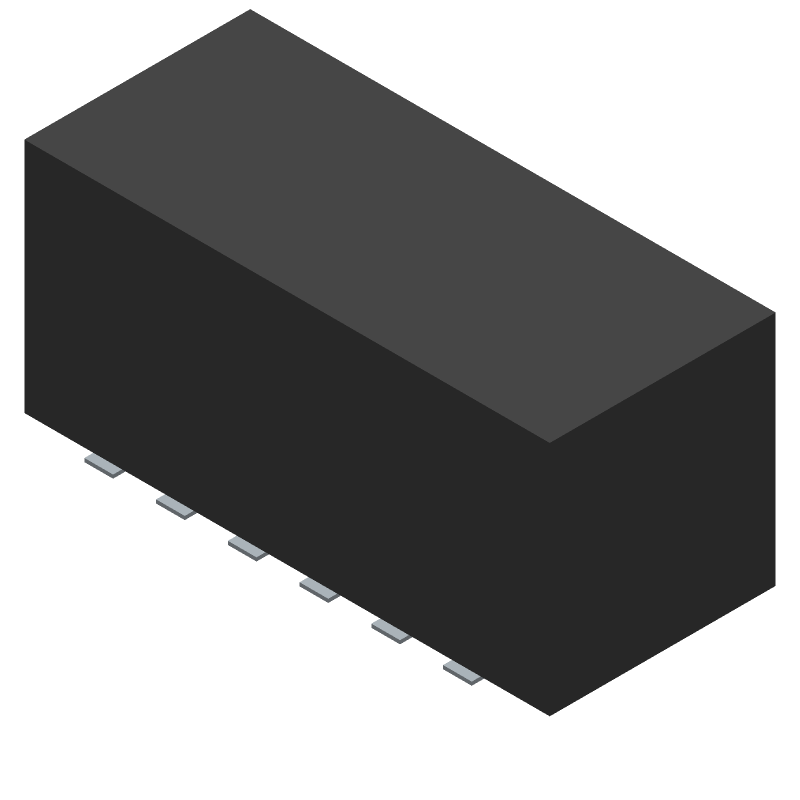

This 12-contact header features a right angle surface mount design with a maximum operating temperature of 105°C and a minimum operating temperature of -55°C. It is constructed with a glass filled nylon insulator and has a commercial reliability rating. The header is rated for a maximum signal current of 1A and has a dielectric withstanding voltage of 500VAC. It meets the UL flammability code 94V-0 and is available in a single configuration.
MountingRIGHT ANGLE
Quick Jump:
Technical Specifications
Molex 87832-1207 technical specifications.
General
| Max Operating Temperature | 105 |
| Min Operating Temperature | -55 |
| Termination Type | SURFACE MOUNT |
| Insulator Material | GLASS FILLED NYLON |
| Total Number of Contacts | 12 |
| Contact Gender | MALE |
| Reliability | COMMERCIAL |
| Manufacturer Series | 87832 |
| Mounting Style | RIGHT ANGLE |
| Rated Current (Signal) | 1 |
| Dielectric Withstanding Voltage | 500VAC |
| Insulator Color | BLACK |
| UL Flammability Code | 94V-0 |
| Number Of PCB Rows | 2 |
| Plating Thickness | 15u |
| Number Of Connectors | ONE |
| Mating Contact Row Spacing | 0.079 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | Yes |
| HTS Code | 8536.69.40.40 |
| REACH | Compliant |
| Military Spec | True |
