30-position, 2-row male pin header for board-to-board applications. Features a 2mm pitch and 0.079 inch row spacing with a straight, surface mount terminal. Offers a 2A current rating and 125V voltage rating, with gold-plated brass/bronze contacts. Black, UL94 V-0 rated insulator ensures durability from -55°C to 105°C.
Voltage Rating125V
Current Rating2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 87832-3020 technical specifications.
General
| Color | Black |
| Contact Material | Brass, Bronze |
| Contact Mating Length | 0.141inch |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 2A |
| Depth | 6.3mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Height | 7.6mm |
| Housing Color | Black |
| Lead Free | Contains Lead |
| Length | 32.65mm |
| Max Current Rating | 2A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 125V |
| Mount | Surface Mount |
| Number of Circuits | 30 |
| Number of Contacts | 30 |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.079inch |
| Series | Milli-Grid™ 87832 |
| Shrouded | Yes (With) |
| Termination | Solder |
| Voltage Rating | 125V |
| DC Rated Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 87832-3020 Datasheet
Download the complete datasheet for Molex 87832-3020 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

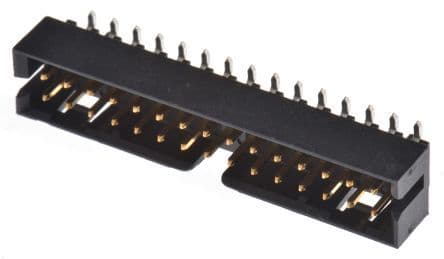

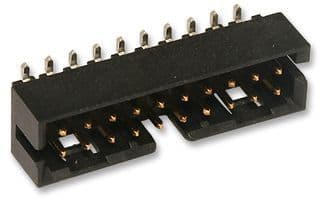

Product Images
