40-position, 2-row male header connector with a 2mm pitch. Features gold-plated bronze contacts and a 2A current rating. This vertical, surface mount receptacle has a black, UL94 V-0 rated insulator and a locking mechanism. Operating temperature range is -55°C to 105°C with a 125V AC/DC voltage rating.
Voltage Rating125V
Current Rating2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 87832-4020 technical specifications.
General
| Contact Gender | Male |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 2A |
| Depth | 6.3mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Height | 7.6mm |
| Housing Color | Black |
| Lead Free | Contains Lead |
| Length | 42.65mm |
| Max Current Rating | 2A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 125V |
| Mount | Surface Mount |
| Number of Circuits | 40 |
| Number of Contacts | 40 |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 1200 |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 2mm |
| Series | 87832 |
| Shrouded | Yes (With) |
| Termination | Solder |
| Voltage Rating | 125V |
| DC Rated Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 87832-4020 Datasheet
Download the complete datasheet for Molex 87832-4020 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

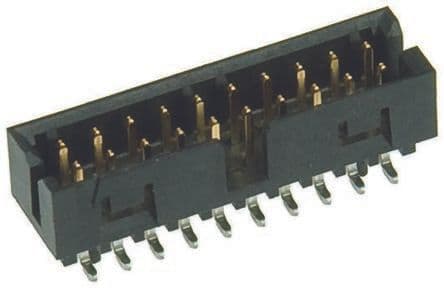

Product Images
