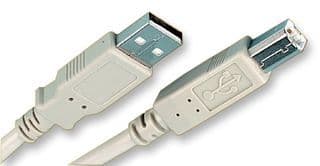

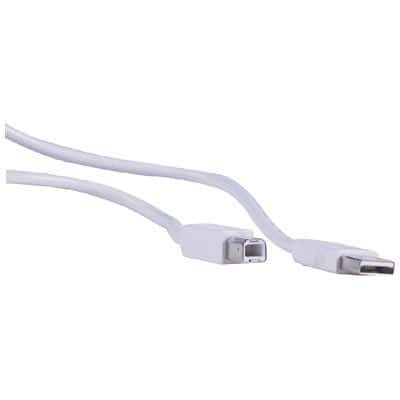

Shielded USB 1.1 cable assembly with male-to-male USB plugs. Features 4 conductors, 4 contacts, and 4 positions, utilizing 28AWG copper alloy contacts. Offers a 1A current rating and 30V voltage rating, with a 2m lead length and 12Mbps data rate. Available in white, black, and grey, this RoHS compliant cable assembly is designed for reliable interconnection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 88732-9200 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Molex 88732-9200 technical specifications.
| Color | White, Black, Grey |
| Connector Type A | USB, Plug |
| Connector Type B | USB, Plug |
| Contact Material | Copper Alloy |
| Current Rating | 1A |
| Data Rate | 12Mbps |
| Gender | Male to Male |
| Lead Free | Lead Free |
| Lead Length | 2m |
| Length | 2.09m |
| Max Current Rating | 1A |
| Number of Circuits | 4 |
| Number of Conductors | 4 |
| Number of Contacts | 4 |
| Number of Cores | 4 |
| Number of Positions | 4 |
| Packaging | Bulk |
| Primary Type | CABLE ASSEMBLY |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 88740 |
| Shielding | Shielded |
| USB Standard | USB 1.1 |
| Voltage Rating | 30V |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | USB, Round |
| RoHS | Compliant |
Download the complete datasheet for Molex 88732-9200 to view detailed technical specifications.
