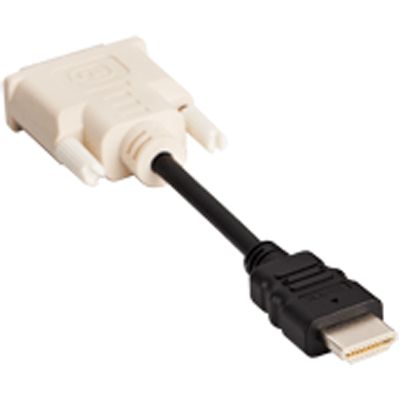

Shielded, 1-meter audio/video cable assembly featuring HDMI A plug to DVI-D plug connectors. This male-to-male assembly supports a maximum current rating of 500mA and a voltage rating of 40V AC. Constructed with 28AWG round wire, it operates within a temperature range of 0°C to 50°C and is RoHS compliant.
Sign in to ask questions about the Molex 88768-3500 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Molex 88768-3500 technical specifications.
| Color | Natural, Black |
| Connector Type A | HDMI, DVI, Plug |
| Connector Type B | DVI, HDMI, Plug |
| Current Rating | 500mA |
| Gender | Male to Male |
| Gender Type A | Male |
| Gender Type B | Male |
| Lead Free | Lead Free |
| Lead Length | 1m |
| Length | 1m |
| Max Current Rating | 500mA |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 40V |
| Number of Circuits | 19 |
| Number of Conductors | 19 |
| Number of Poles | 19 |
| Orientation | Horizontal |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | 88768 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 40V |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Round |
| RoHS | Compliant |
