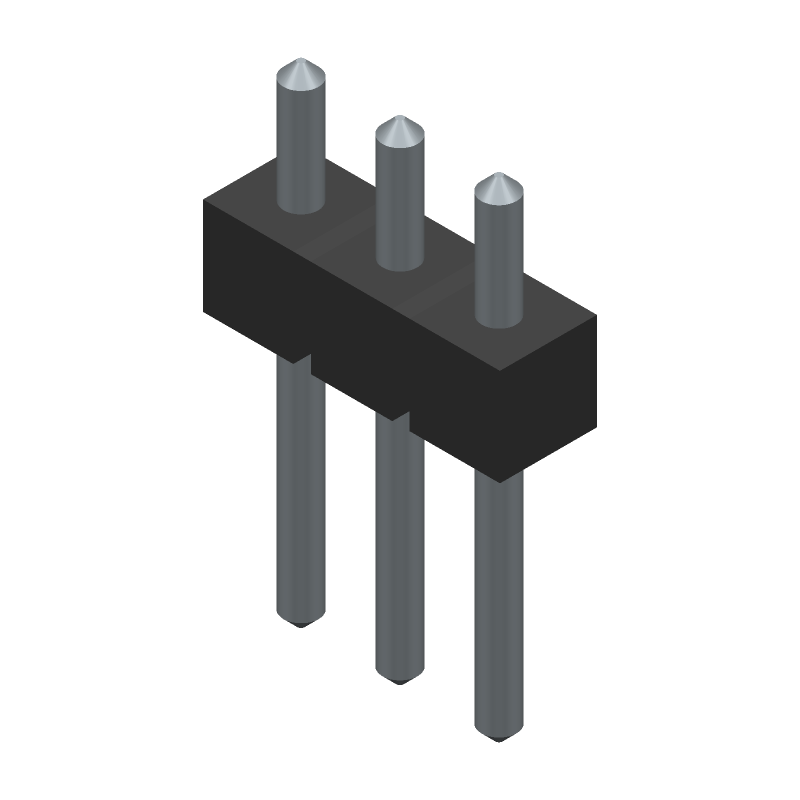

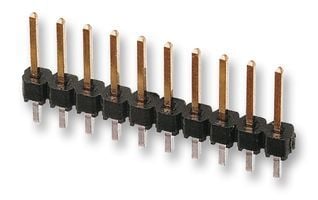

3-circuit, 1-row male header with a 2.54mm pitch, designed for board-to-board applications. Features brass contacts with tin plating, a 3A current rating, and a 350V voltage rating. This vertical, through-hole mounted connector has a black insulator and is lead-free and RoHS compliant. Operating temperature range is -55°C to 125°C.
Voltage Rating350V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 90120-0123 technical specifications.
General
| Color | Black |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Mating Length | 6.75mm |
| Contact Plating | Tin |
| Contact Post Length | 2.9mm |
| Current Rating | 3A |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Black |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (DC) | 350.35kV |
| Mount | Through Hole |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Packaging | Tray |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | 90120 |
| Termination | Solder |
| Voltage Rating | 350V |
| Voltage Rating (AC) | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 90120-0123 Datasheet
Download the complete datasheet for Molex 90120-0123 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
